AGS General Purpose Single Shaft Shredder

AGS General Purpose Single Shaft Shredder

AGX/AGS/AGF/AGH

KEY FEATURES >

1. Large diameter rotor   2. Machining pocket turret   3. Surface reinforcement optional   4. Concave square knife   5. Solid shell   6. Heavy bearing   7. Universal coupling   8. High torque gearbox   9. Hydraulic swing gate valve   10. Hydraulic pushing   11. Transmission shaft bolt   12. Multiple rotor design   13. Two speed hydraulic system   14. Oil cooling of gearbox   15. Toothed shift   16. Amp instrument control

OPTIONS >

1. Hydraulic feeding   2. Gearbox with shrink disc   3. Rotor cooling   4. Isolation between tubes   5. Touch screen PLC   6. Funnel type observation mirror   7. Increase motor power   8. Hydraulic operation   9. Color customization   10. Turbine hydraulic   11. Wear resistant shell plate

GENERAL DESCRIPTION

AGS standard single shaft shredder is made of 457mm diameter special-shaped rotor made of solid steel, and the rotation speed is 74rpm. The concave four-way rotary cutter is installed on the groove of the contour rotor and the special tool holder to reduce the cutting gap between the counter cutter and the rotor and ensure high efficiency, low energy consumption and tearing effect. The hydraulic ram automatically feeds the material in the cutting cavity of the rotor through the load related control. The hydraulic system is equipped with high pressure valve and volume flow controller, which can be set according to the feeding material. Strong base bearing block, separated from the cutting chamber to prevent dust and dirt from penetrating into the oversized bearing. This ensures long service life and minimum service and maintenance. Power is transmitted from the motor via a drive belt through a large gearbox located on the shaft end of one end of the rotor. There are emergency stop buttons on the fuselage and control panel. When the front panel is opened, the safety switch can prevent the machine from starting.

APPLICATIONS

AGS standard single shaft shredder has a wide range of applications in various industries, such as: plastic / Wood / paper / flame retardant

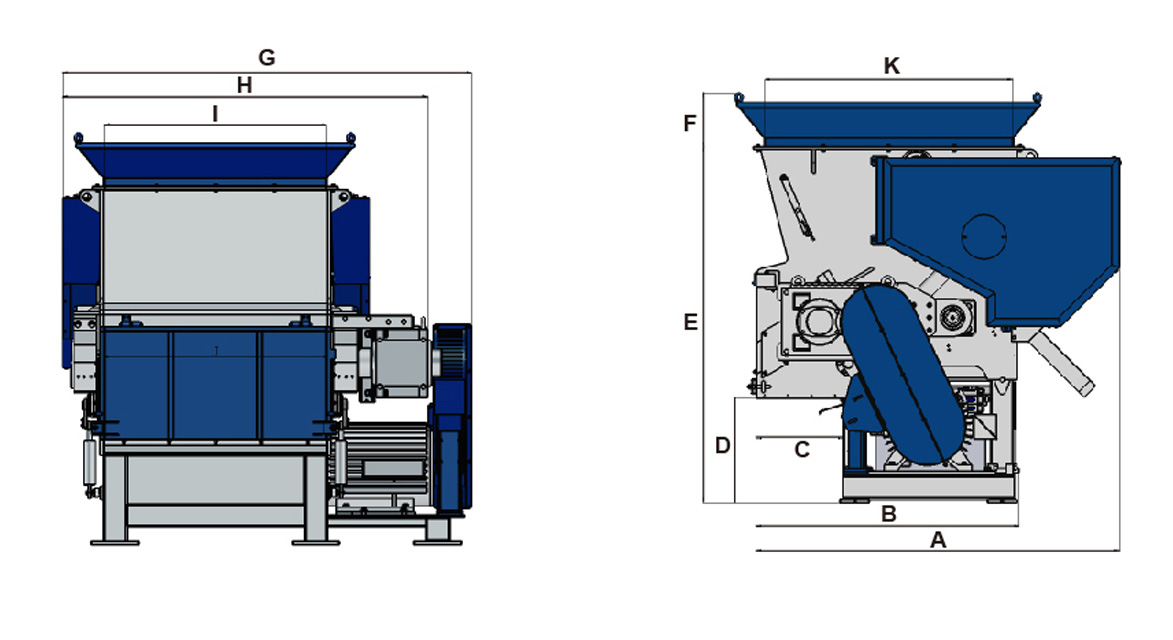

TECHNICAL DATA
